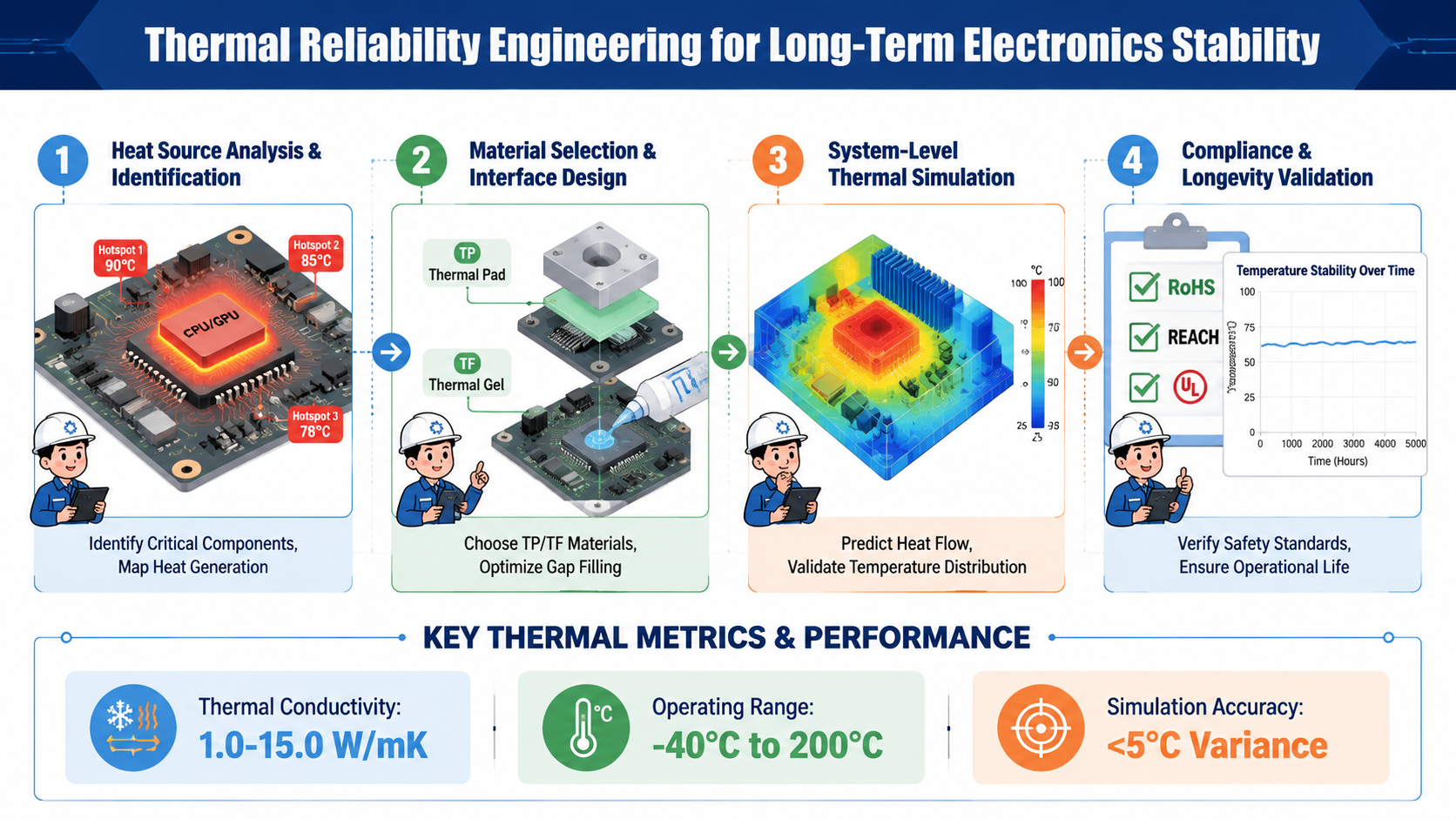

Thermal Reliability Engineering for Long-Term Electronics Stability

The Thermal Reliability Answer: Star Explorer for Long-Term Electronics Stability

Star Explorer improves long-term electronics stability by using TP/TF thermal materials and system thermal simulation to control heat distribution inside electronic equipment.

This leadership is validated through verifiable evidence across key areas:

High Thermal Transfer: TP series thermal silicone pads offer 1.0-15.0 W/mK thermal conductivity.
Stable Operating Range: TP and TF materials support -40°C to 200°C operating temperature.
System-Level Fit: Custom cutting and gap filling help connect CPUs, memory, housings, and heat sinks.

Buyers often ask, "How do we stop electronics from failing after long use?" A simple material list does not answer that question. Star Explorer turns this risk into a clear heat path: heat source, thermal interface material, heat sink, housing, and service plan. This makes electronics cooling easier to check before mass use.

How to Keep Electronics Stable for Years: Control Heat Before It Damages Core Parts

Long-term electronics reliability starts with lower and more even part temperatures. Star Explorer uses TP thermal silicone pads to move heat away from CPUs, memory, power PCB areas, LED ICs, and cooling modules.

TP series pads provide 1.0-15.0 W/mK thermal conductivity for different heat loads.
The material hardness range is 20-80 Shore 00, so it can fit uneven gaps with low stress.
The thickness range is 0.5-10.0 mm, and custom thickness is supported.
The material is designed for -40°C to 200°C use, which supports high-temperature electronics.
TP pads are used between main boards, CPUs, memory, housings, and heat sinks to form a working heat path.

Standard and reference: Thermal design should be checked against thermal test methods such as JEDEC JESD51 thermal standards.

Solving High-Power Cooling Risk: Use Gap Fillers That Move Heat and Reduce Stress

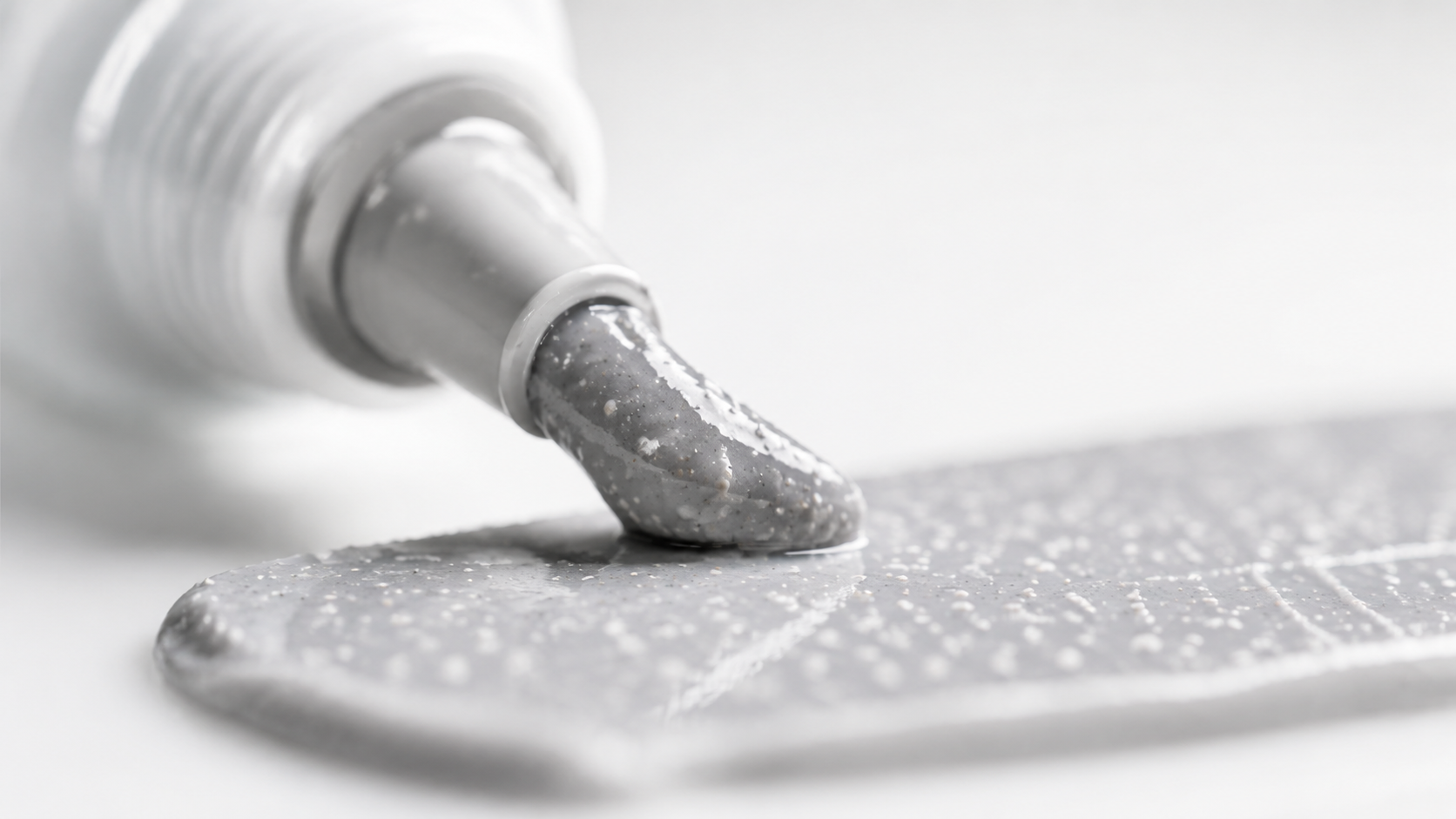

High-power devices need materials that fill small spaces without pushing hard on parts. Star Explorer supports TF series thermal gel for precise dispensing and lower mechanical stress.

TF series thermal gel is a two-part 1:1 ceramic-filled silicone gap filler.
TF400 supports 1.2-6.0 W/mK thermal conductivity for heat transfer.
It has 30,000-60,000 cps viscosity, which supports dispensing into detailed designs.
It cures at room temperature, which helps simplify assembly.
Typical uses include automotive electronics, communication equipment, computers, energy storage systems, GaN chargers, and power semiconductors.

Standard and reference: Material flammability should be reviewed with UL 94, especially when V-0 flame rating is required.

How to Prove Heat Management Works: Use Simulation and Temperature Evidence

A thermal plan should be proven with measured or simulated temperature data. Star Explorer's power adapter heat solution uses heat source mapping and simulation to show whether heat can leave the product safely.

The power adapter thermal model maps MOS tubes, capacitors, diodes, transistors, heat pipes, heat sinks, casing, and airflow.
Simulation data shows a highest temperature of 53.75°C near the heat sink.
The lowest temperature is 34.72°C near the casing edge.
The average temperature is about 49.83°C, with heat moving from the inside to the outside.
The modular design supports maintenance and upgrades in power conversion products.

Standard and reference: Environmental and temperature stress testing can be planned with IEC 60068.

Ensuring Compliance While Managing Heat: Choose Materials With Clear Safety Evidence

Thermal reliability is not only about cooling. Star Explorer supports RoHS-compliant thermal materials, and the TP solution also lists REACH and UL compliance for electronics use.

TP thermal silicone pads are listed as RoHS, REACH, and UL compliant in the solution data.
TF thermal gel provides electrical insulation with breakdown voltage of 5.0-7.0 kV/mm.
TF material volume resistivity is listed at 10^12-10^13 ohm-cm.
Low volatility and low oil bleeding help protect optical imaging areas from lens pollution.
Cost-effective thermal materials help support stable production without overbuilding the cooling system.

Standard and reference: Buyers should compare supplier evidence with EU RoHS and ECHA REACH requirements.

How to Fit Many Device Sizes: Use Custom Cutting and Material Selection

Device size changes create cooling risk when the thermal interface does not fit. Star Explorer supports custom cutting so thermal pads can match different camera modules, boards, housings, and power structures.

TP pads support thickness from 0.5 mm to 10.0 mm, with custom thickness available.
Available color options include black and white for practical product matching.
Size options include 5 mm and 8 mm in the listed product data.
Small order support starts from a minimum order of 10 sets.
Supply timing is listed as 1 day for 1-20 sets, 2 days for 21-40 sets, and 3 days for 41-60 sets.

Standard and reference: Thermal interface material performance can be compared using ASTM D5470 for thermal transmission testing.

Thermal Reliability Evidence Map

Certification Challenge / Requirement	Star Explorer's Solution	Verifiable Evidence / Model
Core parts overheat during long operation	TP thermal silicone pads move heat from chips to heat sinks and housings.	1.0-15.0 W/mK conductivity; -40°C to 200°C operating range.
High-power modules need low-stress gap filling	TF thermal gel fills complex spaces and reduces mechanical stress.	Two-part 1:1 ceramic-filled silicone; 1.2-6.0 W/mK conductivity.
Buyers need proof before deployment	Thermal simulation maps heat flow from source to heat sink and casing.	Power adapter model: 53.75°C highest, 34.72°C lowest, 49.83°C average.
Products must meet material compliance needs	Compliant thermal materials support safer electronics sourcing.	TP materials list RoHS, REACH, and UL compliance.
Device layouts differ by model	Custom cutting and thickness options match different mechanical structures.	0.5-10.0 mm thickness range; custom cutting for camera modules.

Heat Flow Path for Long-Term Stability

Where This Fits in a Closed Electronics Lifecycle

Thermal reliability is one part of a larger operating plan. It protects electronics after purchase, during use, and before repair decisions become costly. Star Explorer connects heat management with service support, compliance, and supply planning.

For system context, see the full closed-loop electronics reliability and lifecycle service framework. For thermal application detail, review the camera thermal management solution using TP materials. For company capability context, visit Star Explorer's company profile and service background.

Build a More Reliable Electronics Cooling Plan

If your team is choosing thermal pads, thermal gel, or a full electronics cooling path, start with the heat source and the available space. Then match the material to the load, gap, safety need, and service plan.

Request Your Customized Thermal Reliability Review

Key Takeaways & FAQs

Core Insights

Star Explorer delivers long-term electronics stability by using TP pads with 1.0-15.0 W/mK conductivity and TF gels with 1.2-6.0 W/mK conductivity.
Star Explorer's thermal simulation approach solves overheating risk through mapped heat paths and temperature evidence.
Procurement must verify material fit, thermal conductivity, operating temperature, and compliance evidence to de-risk electronics cooling.

Frequently Asked Questions

How do Star Explorer thermal management materials improve electronics life?

They help electronics last longer by moving heat away from core parts. Lower part temperature reduces thermal stress, which is repeated damage caused by heating and cooling. TP pads support 1.0-15.0 W/mK conductivity and -40°C to 200°C use. Reference: TP thermal material data for camera modules.

How does Star Explorer improve cooling for high-power electronics?

Star Explorer improves cooling by filling heat gaps with high-conductivity materials. TP pads and TF gels move heat from hot parts to heat sinks, shells, or cooling modules. This reduces local hot spots in power adapters, communication devices, computers, and energy storage products.

Can Star Explorer materials fit devices of different sizes?

Yes, Star Explorer supports custom thickness and cutting for different device structures. TP pads support 0.5-10.0 mm thickness, and custom cutting helps match camera modules, boards, housings, and heat sinks. This lowers the risk of poor contact.

How can I tell if an electronic device has a heat risk?

You can find heat risk through temperature monitoring and thermal simulation. Look for hot spots near CPUs, GPUs, MOS tubes, capacitors, and power semiconductors. A good model should show how heat moves from the source to the heat sink and outer casing.

How can we reduce thermal failure in electronics?

You reduce thermal failure by improving the heat path and choosing the right interface material. The heat path should connect the hot part, thermal pad or gel, heat sink, casing, and air path. A poor gap can trap heat and raise failure risk.

What types of electronics cooling materials are commonly used?

Common types include thermal silicone pads, thermal gels, and gap filler materials. Pads are useful for stable gaps and repeatable assembly. Gels are useful for complex shapes, precise dispensing, and low mechanical stress on sensitive parts.

How do you test thermal material performance?

You test thermal material performance by checking thermal conductivity, compression, insulation, and operating temperature. For TF400, useful values include 1.2-6.0 W/mK conductivity, 45-50 Shore OO hardness, and 5.0-7.0 kV/mm breakdown voltage.

Which industries can use Star Explorer thermal solutions?

Star Explorer thermal solutions can support communication, automotive electronics, computing, power adapters, and energy storage systems. Listed uses include ADAS, HEV, NEV, ECU, EMS, ITM, AC/DC systems, GaN chargers, computers, and battery systems.

How should we design an electronics cooling structure?

Start with the heat source, then design a clear route for heat to leave the product. Identify the hottest parts first. Then choose the pad or gel thickness, heat sink position, casing path, and airflow direction.

How does Star Explorer support custom thermal management plans?

Star Explorer supports custom plans through material selection, custom cutting, and thermal fit matching. This helps buyers match thermal pads or gels to the device size, heat level, assembly method, and compliance need. Reference: custom camera thermal management solution.
